System Design: Design a register API

May 12, 20256 min read

This post is from my series of system design for beginners. In the last blog, we learned about what is API. Now, we will implement all our learning to solve a system design problem (HLD = High Level Deisgn).

This is going to be a long read. So, here is a TOC to help you jump on the section of your interest.

Check at Github

Problem:

Design a register API.

Let's start

As an engineer, you will be tempted to solve the problem as soon as possible. However, to be a good engineer, break the problem, think about edge cases, think about what is missing in the problem? Remember, system design problems are high level and one line. As an engineer it is your job

1 . to make the scope small via asking questions

2 . to find out this missin use cases

3 . to think about edge cases and so on.

In short, always ask follow-up questions.

Follow-up Questions:

Do I need to cover the login, and auth flow?

No
How the registration confirmation would be? Form, SSO, OTP, email confirmation?

Email
How many users are we expecting?

Assume Meta, Amazon, etc Scale
What will happen when a user registers with an alerady registered email?

Show the error of duplication

Functional and non-functional Requirements

Functional Requirements

user can regiseter using name, email, and password
duplicate email should be handle gracefully

Non-functional requirements

Secure
scalable
Logs and metrics
Perfomant

HLD

I am from UI background, I prefer to do the UI flow first to undrstand and explain how the flow would be. For someone who is not from UI background they can do a rough sketch (ignore form details, or UI elements, etc).

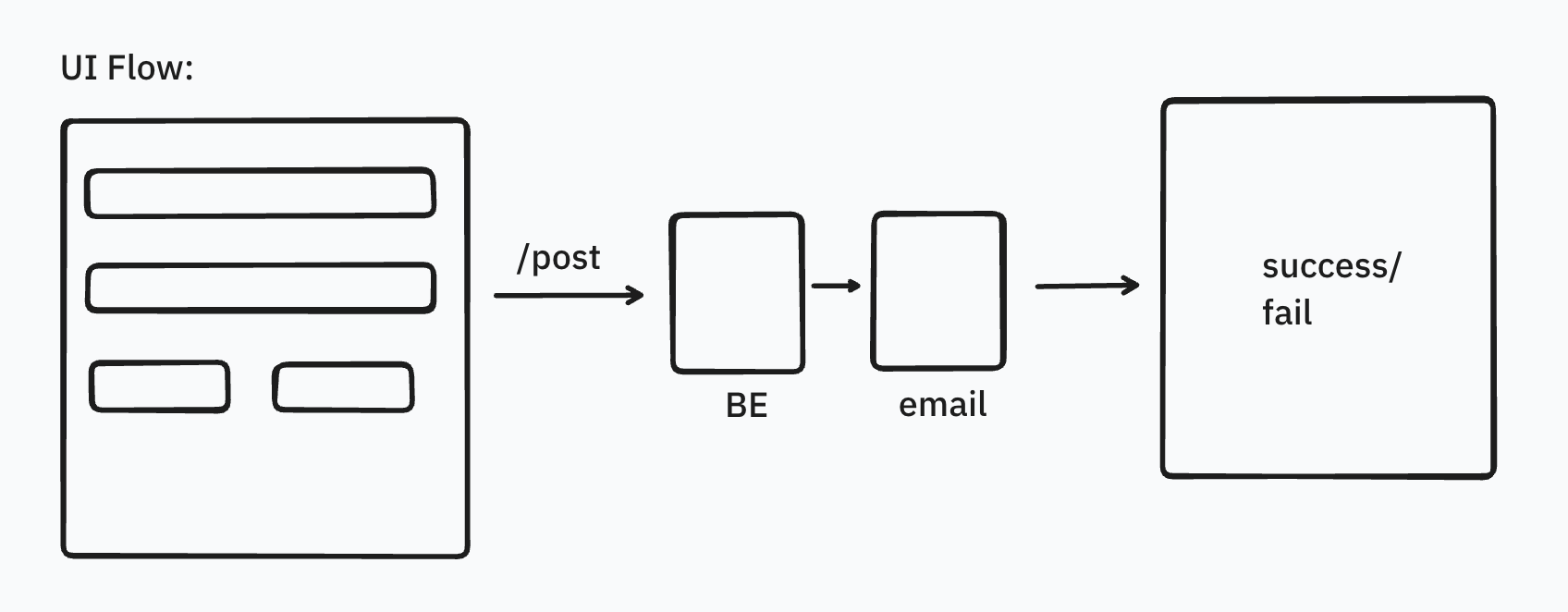

UI register form

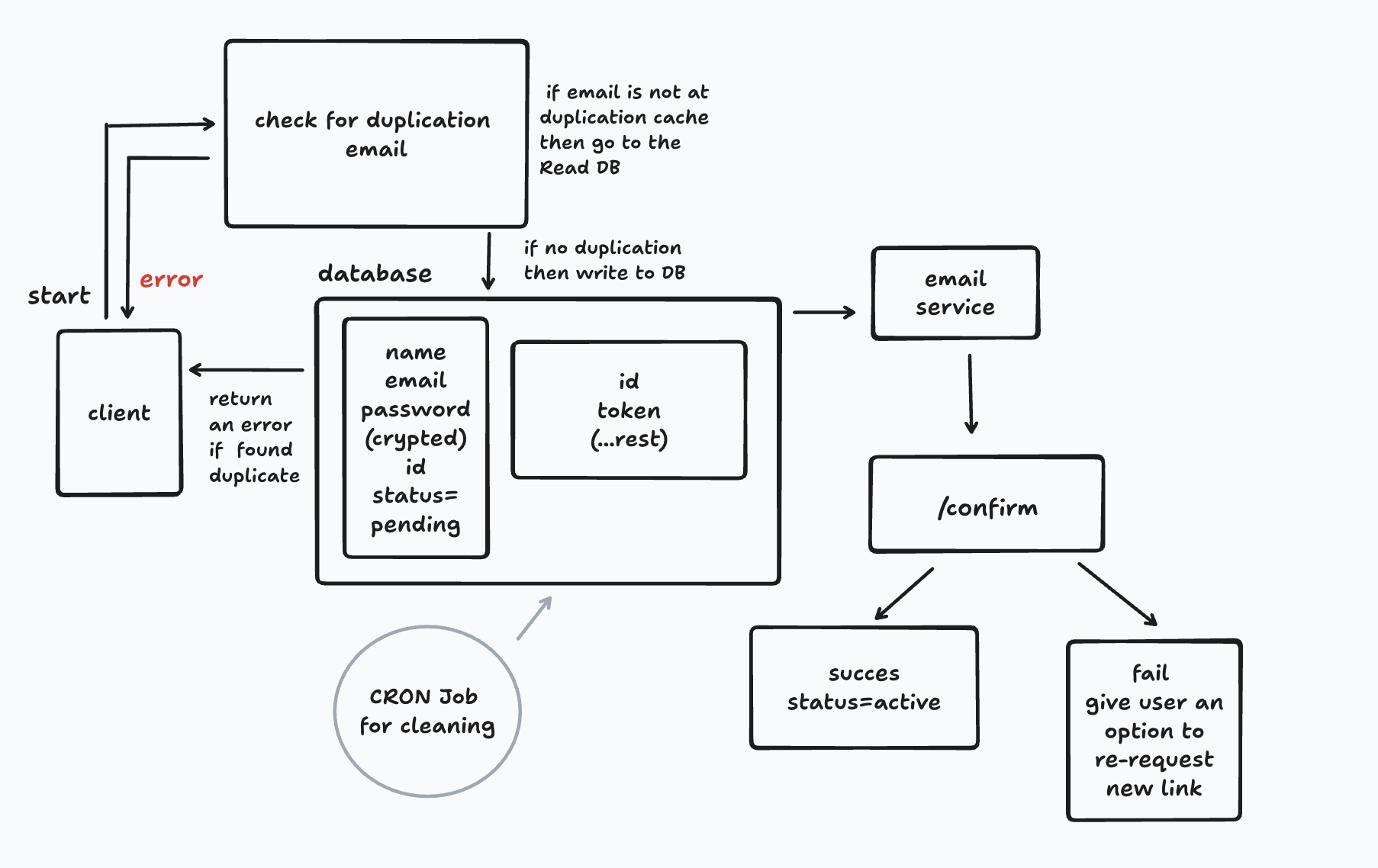

After UI, I move to the HLD:

API design

For me this is the low hanging fruit as well as this is the base of this register API. As what data we are going to save.

ACTION: POST

API Endpoint: /auth/v1/register

{ name: string, email: string, password: (SALT + hashing)}

Response: 200 { message: "", description: ""}

Response: 4xx { message: "", description: ""}

Schema design

Users
name	string
email	string
password	Bcrypt/SALT + hashing
id	UUID / AUTO_INCREMENT
status	"pending"
created_at	timestamp

email confirmations
id	id
token	hash(token)
token_expiry	timestamp
status	"pending"
created_at	timestamp
updated_at	timestamp

Confirmation email

Instead of saving confirmation email in the DB we will create email links on the fly using a service.

The benefits of this approach:

1 . We are saving space in the database

2 . As these are the short live links then we don't have to worry about cleaning the database later.

Password Storage

It is a bad practise to save the password as plain text in the database. This would be a security vulnerbitlity. Infact we should be storing the enrypted password.

For this I will use BCrypt for password encryption.

1 . It is a hashing password hashing function.

2 . it will encrypt the password to store securely in the DB.

PS: Do not use reversible encryption or store plain text passwords.

So far we have understood the design, and different components. Now, we will get into building a system - secrure, scalable, fault tolrant, and obserbility:

Security

Building a secure system is crucial. We have different components in our design which would be vulnerable for attacks. We already saw that password storage was one of those.

However, there are different components too. So, here is how we can secure our system:

1 . Rate Limiting: API /register should have rate limit eg. 6 req/min per IP

2 . Captcha or honeypot field: Add captcha or honeypot field to block spam or bots.

3 . Logs/Monitoring: Logs all the requests and moniotor them.

4 . Validation windown for tokens: have expiring window with tokens

5 . Private components: DB will be hosted in private and Services - email confirmation, cleaning service etc.

Scalability

To handle the traffic of the application, we need to take care of scalability of the design. This will help us in handle huge spike and as well as handling faults too (we will cover faults in the next section).

1 . The DB is write heavy.

2 . we wil have single leader and follow the single leader replica

3 . we need to maintain the - consistency across the replicas

4 . Registration is a write-heavy operation — optimize DB for inserts.

5 . Offload email sending to a message queue (e.g., SQS, Kafka).

6 . Use read replicas for to check for duplicated emails.

7 . Use distributed cache (e.g., Redis) for token lookups.

Fault Tolrance

What if the leader node failed? How we can sync the write and read nodes? Think about all the failures we can have in this system and how to handle these.

1 . Implement leader election for DB writes if scaling horizontally.

2 . Introduce a service to retry email delivery on failure.

3 . Token expiry must be respected to avoid abuse and provide user a way to re-generate a new confirmation link.

Logs/monitoring

Logging and monitoring is crucial for every application. I will monitor and logs:

1 . API errors and latency.

2 . Email delivery success/failure.

3 . Token usage patterns.

4 . New user registrations per day/week.

Trade-offs

1 . Use hashed token instead of storing raw token for security.

2 . Email confirmation adds friction but improves account authenticity.

3 . Caching tokens improves speed, but invalidation complexity increases.

4 . A message queue makes email delivery reliable, but adds infra overhead.

CAP (A note about CAP theorm)

This system prioritizes Consistency and Availability. No duplication, and no mistakes in email ids are allow.

Phew, so this won't be possible without amazingpeople who did 1:1 sessions with me to discuss this problem. In next blog, we will go into the LLD.
